TREBLE BOOST



Treble Booster MKI OC44 Transistor

6-Ways In Selector

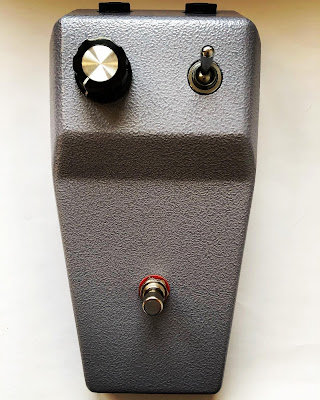

MKI enclosure in hammered grey with inner layer of gold paint. Treble booster six ways input impedance selector.

This our latest preorder received by email, a treble booster setup with germanium OC44 glass specs. transistors and rotatory 6 ways input impedance selector to cut bass frequencies and more of a versatile discretization of frequency range. Built in a hammered grey enclosure, with inner gold layers for future relic effects.


MKI enclosure - Treble booster six ways input impedance selector and transistor OC44.


This special request received on last May 2021. Wiring up with 22AWG cabling, and a selection of vintage audio grade capacitors and military resistors. Click-less switches and medium gain transistors.



Second version in hammered gold

Pre-ordered: MKI Treble Booster OC44

Rhodium Electronics 6 Ways Treble Booster OC44



TREBLE BOOSTER RANGEMASTER
GERMANIUM OC44 MULLARD RED DOT (MID GAIN)

Special preorder trble booster germanium Mullard OC44 glass specs red dot Made in Great Britan.



Circuit built in tag board with carbon composite resistors and vintage Hi-Fi audio grade capacitors.


Exclusive preorder built in fuzzcases UK enclosures. Professionally setup and biased according to Rangemaster circuit. Two input capacitance selection.


Treble Booster Range of Maestro
Mullard OC45 glass specs

Range of Maestro with Mullard OC45, a rangemaster treble booster with Mullard glass specs.


Rangemaster replica with germanium Transistor, audio grade capacitors and carbon comp and military resistors and 60’s Mullard OC45.



  RangeMaster Treble Booster Texas Ranger Cesar Diaz w/ BC167B silicon version

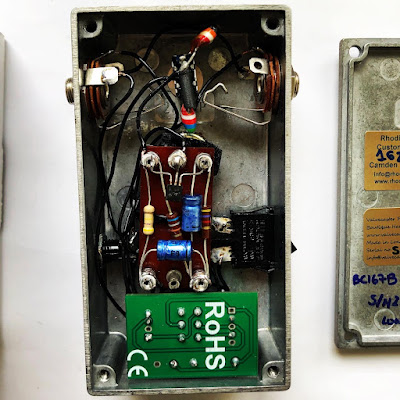

Rehousing an old mid opamp boost, one of first built back in 2013. Now this mini enclosure setup a Texas Ranger Treble Booster Cesar Diaz specs with silicon transistor.



Just tested and sounds awesome. Previously made this circuit with the same transistors BC167B and a four ways input capacitance selector, this time only two ways, in order to boost high and mid frequencies.




Setup with carbon composite and film resistors, Philips Vishay and tropical fish and Mylar capacitors. Silicon BC167B with hFE 300.


Texan Scratchcaster Booster mini Treble Booster Silicon Texas Ranger Cesar Diaz Tag Board

Special Treble Booster Texas Ranger unit in company of the Solotono one knob fuzz 432, a Rangemaster version of this circuit by Cesar Diaz, that sounds phenomenal with certain silicon transistors.


Rehousing an old mid opamp boost, one of first built back in 2013. Now this mini enclosure setup a Texas Ranger Treble Booster Cesar Diaz specs with silicon transistor.


Previously made this circuit with the same transistors BC167B and a four ways input capacitance selector.



This time only two ways, in order to boost high and mid frequencies.



Setup with carbon composite and film resistors, Philips Vishay and tropical fish and Mylar capacitors. Silicon BC167B with hFE 300.



  RangeMaster Treble Booster Texas Ranger Cesar Diaz w/ BC167B silicon version




The title said everything, but nothing about the modification, a bespoke pedal on a budget. Texas Ranger modification by Cesar Diaz of treble booster RangeMaster, modded to transistor silicon nPn circuit layout built with a local builder PCB and wired up according to Texas Ranger circuit, modded with a four ways rotatory switch for input impedance, and biased for mentioned transistor, taking it to the fuzz point at maximum gain. Crystal, transparent and clean, pretty similar to treble booster anyway, just the rotatory switch, only request. Recorded with iPhone 6 and playing the cheapest zebra pups Epiphone slash version. Laney amp and the Bullfigther by Rhodium Electronics.



The title said everything, but nothing about the modification, a bespoke pedal on a budget. Texas Ranger modification by Cesar Diaz of treble booster RangeMaster, modded to transistor silicon nPn circuit layout built with a local builder PCB and wired up according to Texas Ranger circuit, modded with a four ways rotatory switch for input impedance, and biased for mentioned transistor, taking it to the fuzz point at maximum gain. Crystal, transparent and clean, pretty similar to treble booster anyway, just the rotatory switch, the only request.

Recorded with iPhone 6 and playing a Fender Stratocaster Japan series E. Laney amp and the Bullfigther by Rhodium Electronics.


Treble Booster Master of Range Handbuilt RangeMaster Mullard OC44 OC45 OC71 GE Rhodium Electronics

Treble Booster Master of Range Handbuilt RangeMaster Mullard OC45 Rhodium Electronics recorded wih Fender Stratocaster Japan Series E Kahler bridge. Handbuilt pedals in the City of London. Bespoke audio projects and vintage electronics equipment specialist. Treble Booster built to excel. Recorded with Marshall DSL-1 amplifier, clean channel, quarter volume, maximum gain. Fender Stratocaster guitar 5 ways switch in the bridge pickups position.




Rhodium Electronics GE Treble Boost 2019

Black Gold Sparkle & Mullard OC71

Gold Sparkling


Rhodium Electronics Replica of legendary Germanium transistor Treble Booster circuit. Rangemaster layout for a GE Treble Boost with soviet germanium transistor specification.

Hand built in London. Exclusive Sparkle Black and Gold enclosure edition. Recorded with Marshal DSL-1 attenuated hot channel half set up and bi-passed modulation stage. Fender Squier Telecaster Japan 80's.
