Fuzz ToniBender MKIII/MKIV PCB


New ToniBender MKIII/MKIV PCB available in two different layouts, with the new versions ToniBender PCB issued 3 ideal for Gapco enclosures, and PCB ToniBender issued 3 compact version, according to assemble the potentiometers inside the limits of the board to suit compact enclosures and standard cases, and potentiometers still located at the reverse of the PCB.


Big Box PCB (Gapco cases)

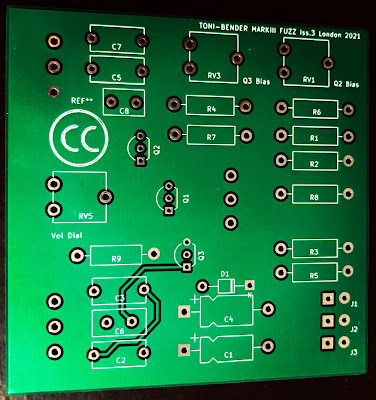

Rhodium Electronics Toni-Bender MKIII issued-3. Gapco enclosure Version - London 2021.

Suitable for Gapco enclosures. You can order this PCB by email or using the Add to Card PayPal button below. Please, contact us by email to combine postage.


Now £1.99 + £4.45 (Royal Mail International Standard)

2 layer PCB board of 76x76mm(2.99x3 inches).


Flat Rate Worldwide Shipping

1 working day dispatching time (First Class Stamp in the UK).


For more options regarding to the postal services, as the tracker is not available worldwide with Royal Mail International Standard, please, contact us and we will reply with the current prices of postage tracking from UK, and required signature on delivery under request, postal service prices straight to your front door.


Compact Box PCB (1590BB/DD)



Rhodium Electronics Toni-Bender MKIII issued-3. Combo Version - London 2021.

Compact version suits standard Hammond enclosures and combo equipment. Recommended for 1590BB, and 1590DD Hammond standard cases (top mounted jacks configuration).

Now Sold Out!!

PCBs available Only Under Pre-order

pcb@rhodiumelectronics.co.uk

    2 layer board of 76x76mm(2.99x3 inches).


This price covers the cost of the board, postage and expenses, only PCB included, and only maximum three PCB units per order. Contact us by email to combine postage.



Please, also contact by email to join the progress of the group of builders interested in this open hardware project:

pcb@rhodiumelectronics.co.uk


Contact us for more info if you are building this circuit. This PCB gives other builders the opportunity to develop their own designs based on this PCB layout, and sell their fuzz pedals without any restriction or mention. Every PCB comes unbranded, as open hardware for DIYers and effects pedals aficionados.


Rhodium Electronics offers a new design of the ToniBender MKIII/MKIV Fuzz, a PCB issued 3, inniciative with a common purpose, a project in collaboration with other musicians, organising a Tour Box and other events, so in order to collect ideas and standardise this PCB for all DIYers and builders in the benefit of this community.

People who requires to achieve the right tone for their Tone--Bender based projects, to express their own ideas and allowing others to modify the current layout according to their stocked components, sharing their experiences and modifying the PCB layout in accordance to help the community of Fuzz pedal builders and DIYers in general.

You can pre-order this ToniBender PCB iss 3 to us directly, so you would be another Fuzz-Fellow happy to try it out!




If you order from outside UK, now flat rate worldwide shipping!
The price covers our PCBs cost and postage. Contact us to combine different samples in the same order to reduce delivery services.

Only this email to get in touch and pre-order this PCB:

pcb@rhodiumelectronics.co.uk

2 layer board of 76x76mm(2.99x3 inches). Only PCB's included.

Both PCB versions give other builders the opportunity to develop their own designs based on the tone-bender circuit layout, and commercialise their fuzz pedals without any restriction or mention.

Please, contact us for more info!

FYI: These PCBs come unbranded, as open hardware for DIYers and effects pedals aficionados.

Some pictures attached to this page are part of the version 2 of this board, which it's been designed with a diferent layout and components footprints according to Rhodium Electronics, who is interested to develop this board as open source project and hardware with the community of pedal builders and Fuzz aficionados and DIYers, who still are invited to contribute in the development of this electronics circuit and layout in the benefit of this community in general.
