RHODIUM ELECTRONICS FUZZ TONIBENDER MKII
REVISION 1.5 GERMANIUM NKT275
These series of fuzz pedals will available soon with a run of four initial boxes engraved by hand, according to develop a next standard series based on NKT275 transistors. A mini fuzz pedal version, looking to offer NKT275 fuzz to the amateur players and musicians in general, without breaking the bank.
A tweaked circuit to achieve the right tone for these peculiar transistor NKT275 specifications. It travels from Vox ToneBender to Fuzzface and Zonk Machine tones, allowing more bass will lead you to the Schaller Fuzz range and others fuzz distortion.
This new version will be available soon, with engraved enclosures and same family of transistors NKT275, giving the name to this fuzz pedal AR275.
FUZZ TONIBENDER MKII REV. 1.5 RUSSIAN GERMANIUM
New circuit layout based on Russian germanium transistors, more of a Vox Tonebender MKII reissue sound with two germanium transistors, tweaked to allow more of a consistent fuzz signal and tasty tones for a modded fuzzface circuit.
This is a ToniBender MKII revision 1.5 by Rhodium Electronics. Germanium Russian Transistors selected pair hFE 60/80 low leakage, setup with internal biasing trimmer, which would take your tone from fuzzface to tonebender, Zonk machine and Schaller fuzz tones, and corresponding dynamic responses with this family of germanium Russian transistors.
This is an early prototype series, first batch of two units with Russian transistors, previous a bigger run of fuzz pedals coming soon with similar specifications setting up NKT275 transistors, and this current family of equivalent Russian transistors when required. This unit works with a PSU 9 volts negative centre. Battery free pedal, still setting a battery snap inside enclosure.
Reserves are open for the next batch of pedals with this circuit layout. It's a new revision of the AR275 PCB board. Pre-order ARF66 now available only by email or blog contact form.
An exclusive edition, super limited Fuzz pedal with NKT275 transistors, awesome and affordable. ARF66 will be available from next year 2022.
RHODIUM ELECTRONICS TONIBENDER MKIII FUZZ
ToniBender MKIII shown in this picture is prototype no.1 of a serie of three prototypes in order to develop this new version of ToniBender Fuzz MARKIII, following with a super limited standard series.
Limited Gold Edition - Tonibender MKIII Fuzz.
Rhodium Electronics ToniBender MKIII Fuzz take on the legendary ToneBender MKIII and MKIV circuits, setup with germanium transistors and a selection of vintage and audio grade electronics.

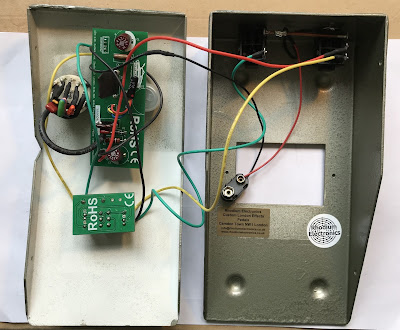

Version 2 of the ToniBender MKIII built in professional prefabricated PCB, more of a robust and reliable construction for effects pedals in a big enclosure type.
Three internal user trimmers, so in order to dialing output signal amplitude, and biasing final amplification stages of this Tonebender circuit layout. It runs with 9 volts battery. Super limited series in hammered gold.
This is the second version of this ToniBender MKIII with a different setup and more of a consistent fuzz tone and sustain, with more of a tonality range and reliable dynamic response for guitars.
Fuzz pre-order Toni-Bender MKIII list now open by email: tonibendermkiii@rhodiumelectronics.co.uk
Rhodium Electronics ToniBender MKIII Fuzz take on the legendary Tonebender MKIII and MKIV circuits, setup with germanium transistors and a selection of vintage and audio grade electronics.
Version 2 of the ToniBender MKIII built in professional prefabricated PCB, more of a robust and reliable kind of construction for effects pedals in big enclosure types.
Three internal user trimmers, so in order to dialling out signal amplitude / gain, and biasing final amplification stages of this Tonebender circuit layout. Modification based on leaking bass frequency to the ground from output volume control. It runs with 9 volts battery. Super limited series in hammered gold.
ToniBender MKIII Camden Records Revision
Finishing with some units were in the shelves, previous runs sold very quick, now I had time to troubleshooting and demoing them one by one.
This time using the dirt channel of my Marshall DSL-1 in economic mode, gain level 1 or one and a half, maximum volume, economic just about 1 watt, it’s like attenuator, playing with bridge pickup, demo with neck pickup next.
Two Units only with chicken heads.
Last ToniBender setup with this configuration of transistors was labelled with a Camden Records logo on top front, but it response vary a little from one to another, due to the selection of transistors and their features, values like gain and leakage, in the last revision.
Discovering a new umbrella of possibilities and guitar tonalities, these variations still exposed to an internal user trimmer, which it’s setup at maximum output gain by Rhodium Electronics.
Our customers mentioned Foxx Tone Machine, Fuzzface, Zonk Machine, of course ToneBender, and it’s incredible the amount of nice words and feedbacks received.
Version 2 of the ToniBender MKIII built in professional prefabricated PCB, more of a robust and reliable construction for effects pedals in a big enclosure type.
Three internal user trimmers, so in order to dialing output signal amplitude, and biasing final amplification stages of this Tonebender circuit layout.
TONI-BENDER MARK III Version 1
Rhodium Electronics Fuzz ToniBender Mark III. This is a small run and have no logo, there only few units available online, as per ToniBender MKiV been tweaked to allow using contemporary germanium transistors.
Rhodium Electronics take on the VOX Tone-Bender MKIII lately modified by Solasound according to different biasing for MKiV and Batman versions, which them been prototyped by Rhodium Electronics in London.
Biased according to a standard gain setup with very low leakage vintage soviets transistors and a selection of audio grade electronics components.
Tone-Bender Mark III version is more of an early rock vintage sound, with more of an unitary gain and more guitar volume control and stable tonality range.
TONI-BENDER MARK IV Version 1
Tone-Bender Mark IV is more of a consistent fuzz, higher output gain than previous version of the Tone-Bender Mark III.
It responses very good when roll off from guitar volume knob, so these very low leakage germanium transistors been biased according to standard specifications, but still can not clean signal up as per a Fuzz-Face or Tone-Bender MKIII circuits.
Messing around a Telecaster Japan Squier 90’s and TONIBENDER Mark IV. Finally decided this setup for assembling our latest fuzz prototype.
Rhodium Electronics Fuzz ToniBender Mark III. This is a small run and have no logo, there only few units available online, as per ToniBender MKiV been tweaked to allow using contemporary germanium transistors.
Rhodium Electronics take on the VOX Tone-Bender MKIII lately modified by Solasound according to different biasing for MKiV and Batman versions, which them been prototyped by Rhodium Electronics in London.
Biased according to a standard gain setup with very low leakage vintage soviets transistors and a selection of audio grade electronics components.
Tone-Bender Mark III version is more of an early rock vintage sound, with more of an unitary gain and more guitar volume control and stable tonality range.
TONI-BENDER MARK IV Version 1
Tone-Bender Mark IV is more of a consistent fuzz, higher output gain than previous version of the Tone-Bender Mark III.
It responses very good when roll off from guitar volume knob, so these very low leakage germanium transistors been biased according to standard specifications, but still can not clean signal up as per a Fuzz-Face or Tone-Bender MKIII circuits.
Messing around a Telecaster Japan Squier 90’s and TONIBENDER Mark IV. Finally decided this setup for assembling our latest fuzz prototype.
Loved the responses with Mullard OC44 OC71 and OC74, finding sonic treble that didn’t come up with other transistors. So, smashing job! Achieving a right good FUZZ TONIBENDER MARK IV. Second Round Mullard AC128 Red Dot 🔴 for Mark IV Tonebender Fuzz Testing and Troubleshooting...Third Round Mullard OC81 White Dot ⚪️ for Mark IV Tonebender Fuzz Testing and Troubleshooting...
Sixth round and turn for first NKT222 transistor of the day... Fourth Round Texas Instruments 2N527 transistor for Mark IV Tonebender...
Seventh round back to Mullard OC74... Eight Round Mullard OC71 glass specs TONIBENDER Mark IV... Ninth Round Mullard OC44...
TONIBENDER MKIII TOUR FUZZ BOX
UPDATED 14/10/21 - UK TOUR FUZZ BOX ENDED - TOUR FUZZ BOX TONIBENDER MKIII - SOLD OUT
Guitar Demo TONIBENDER Mark IV Compact
Messing around a Stratocaster Japan Squier early 80’s and TONIBENDER Mark IV.
Finally decided the same setup for the third transistor, as per the book, so I didn’t want to spend time to setup a bias, lucky we had a few transistors for testing this circuit.
You can check it out on my personal Facebook and Instagram. Recently created www.tanquelab.com confounded company with the best tooling mastery engineer, my cousin Jose!
Recently built this preordered Toni-Bender MARK iV with a couple of replicated TONEBENDER pedals with different specs and bandwidth. This is 2/2 and demoed with Solasound Colorsound Wah Fuzz Swell from blues rock to psychedelic flamenco. Recorded with a Fender Stratocaster Japan Series E Kahler tremolo bridge and Laney amplifier.
Unique Rhodium Electronics ToniBender MKIII Compact Fuzz built in Gapco UK enclosure.
Rhodium Electronics ToniBender MKIII Fuzz take on the legendary Tonebender MKIII circuit, setup with germanium transistors and a selection of vintage and audio grade electronics. ToniBender MKIII built in veroboard. It runs with 9 volts battery.
Rhodium Electronics ToniBender MKIII Fuzz take on the legendary Tonebender MKIII circuit, setup with germanium transistors and a selection of vintage and audio grade electronics. ToniBender MKIII built in veroboard. It runs with 9 volts battery.
ToniBender MKIV Compact Desktop
ToniBender MKIV Compact Desktop
Compact version 3 of the ToniBender, which it would not used in my own, so I did this one as part of a deal with a friend, so it’s special, it’ll be repeated with Mullard OC71S and adding an input impedance control at the rear panel. Output transistor POIF OC45 and fourth transistor as a diode.
Output gain control at rear of the desk enclosure. True bypass and only battery, with isolation in the input jack.
Germanium Tonebender MKIII tweaked for leaking bass from output volume control. Clean up gently when roll off from guitar volume.

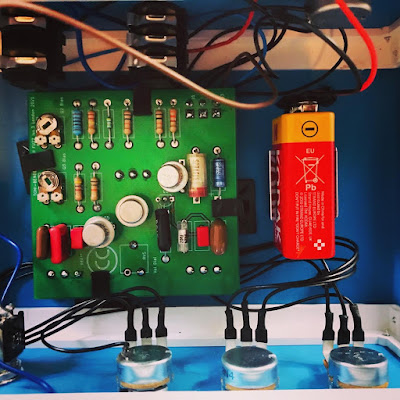

Internal bias for stage 1 and 3 of the amplification circuit. Carbon trim pots. Wima and tropical fish and Vishal and Phillips and Sprague capacitors.
ToniBender MKIV Rhodium Electronics in compact desktop blue fuzz box. Setup with Mullard British Made OC71s and a selection of audio grade electronics components.Working in a new Compact ToniBender MKIV with original British Mullard OC71s for my friend, who also purchased a multimeter, to get references of the collector bias values when some some nice tone and spots of old songs playing with the ToniBender MKIII version 2, which it still in a tour box in the UK, thanks Terry!
Based on previous prototype Compact version 3 of the ToniBender, which it would not used in my own, so I did this one as part of a deal with a friend, so it’s special, it’ll be repeated with Mullard OC71S and adding a input impedance control at the rear panel
Output transistor POIF OC45 and fourth transistor as a diode.
Output gain control at rear of the desk enclosure. True bypass and only battery, with isolation in the input jack.
Germanium Tonebender MKIII tweaked for leaking Bass from output volume control. Clean up sweetly when roll off from guitar volume knob.
Internal bias for stage 1 and 3 of the amplification circuit. Carbon trim pots. Wima and tropical fish and Vishal and Phillips and Sprague capacitors.
Working in a new Compact ToniBender MKIV with original British Mullard OC71s for my friend, who also purchased a multimeter, to get references of the collector bias values when some some nice tone and spots of old songs playing with the ToniBender MKIII version 2, which it still in a tour box in the UK, thanks Terry!
Based on previous prototype Compact version 3 of the ToniBender, which it would not used in my own, so I did this one as part of a deal with a friend, so it’s special, it’ll be repeated with Mullard OC71S and adding a input impedance control at the rear panel
Output transistor POIF OC45 and fourth transistor as a diode.
Output gain control at rear of the desk enclosure. True bypass and only battery, with isolation in the input jack.
Germanium Tonebender MKIII tweaked for leaking Bass from output volume control. Clean up sweetly when roll off from guitar volume knob.
Internal bias for stage 1 and 3 of the amplification circuit. Carbon trim pots. Wima and tropical fish and Vishal and Phillips and Sprague capacitors.
Treble Booster MKI OC44 Transistor 6-Ways In Selector
MKI enclosure in hammered grey with inner layer of gold paint. Treble booster six ways input impedance selector. This our latest preorder received by email, a treble booster setup with germanium OC44 glass specs. transistors and rotatory 6 ways input impedance selector to cut bass frequencies and more of a versatile discretization of frequency range. Built in a hammered grey enclosure, with inner gold layers for future relic effects.
MKI enclosure - Treble booster six ways input impedance selector and transistor OC44.
This special request received on last May 2021. Wiring up with 22AWG cabling, and a selection of vintage audio grade capacitors and military resistors. Click-less switches and medium gain transistors.
Second version in hammered gold
Pre-ordered: MKI Treble Booster OC44
Rhodium Electronics 6 Ways Treble Booster OC44

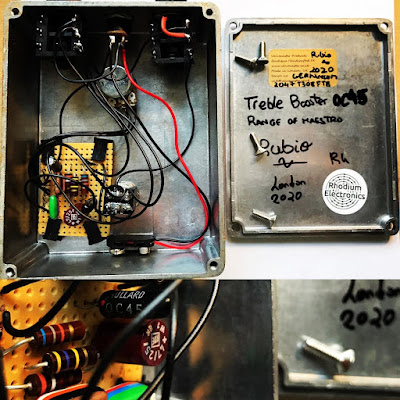

Treble Booster Range of Maestro Mullard OC45 glass specs
Range of Maestro with Mullard OC45, a rangemaster treble booster with Mullard glass specs.
Rangemaster replica with germanium Transistor, audio grade capacitors and carbon comp and military resistors and 60’s Mullard OC45.

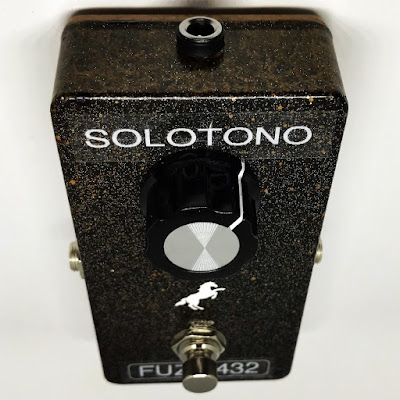

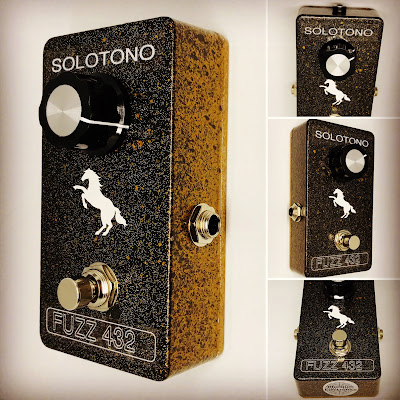

Fuzz 432 Rhodium Electronics SoloTono
Fuzz 432 Rhodium Electronics circuit SoloTono series. Based on legendary Solasound Coloursound Fuzz circuit part of the Jumbo Fuzz Wah Swell pedal.
Rhodium Electronics one knob Fuzz SOLOTONO Silicon Fuzz 432. Take on the legendary Solasound Coloursound Fuzz, high gain stage of the classic early 70’s Jumbo Fuzz Wah Swell pedal, so this is the fuzz control circuit, biased circuit with selected vintage National Semiconductor BC167B silicon transistors. Battery free pedal. Comes in a white box.One control knob fuzz with two silicon transistors, old school biased circuit, excellent guitar tone and frequency range and dynamic response.
Selected pair of matched silicon transistors with hFE 432/432, biased circuit with internal bias potentiometer built in PCB and audio grade electronics. Battery free pedal.
Fuzz 432 Rhodium Electronics circuit SoloTono series. Based on legendary Solasound Coloursound Fuzz circuit part of the Jumbo Fuzz Wah Swell pedal.
One control knob fuzz with two silicon transistors, old school biased circuit, excellent guitar tone and frequency range and dynamic response.
Selected pair of matched silicon transistors with hFE 432/432, biased circuit with internal bias potentiometer built in PCB and audio grade electronics. Battery free pedal.

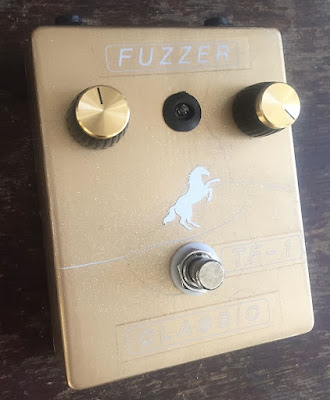

Rhodium Electronics Classic Fuzz Prototype
This Fuzz classic silicon Fuzz-Face layout with mods by Roger Mayer is built with BC109 transistors. This model was a summer 2020 pre-order, a low cost silicon version of the Band of Gypsys recently launched on the market. Our customer wanted to try ordering us a pedal, instead of buying the new band of gypsys pedals on market.
We did our best to research about the sound from these three concerts and developped our own version of the sound from this album of Jimi Hendrix, following the different layouts, and using transistors from our own stock, instead of the MPSA silicon transistors used from famous brands, which are very high gain, but noisy and have a different frequency response than our unpredictable BC108 / BC108B / BC109 collection of silicon transistors.
During the days this preorder was received, we were developping a few ToneBender MK IV pedals, but finally decided to attend to a profesional studio with our latest Fuzz Silicon version.
After the Jimi's Fuzz didn't replicated any other silicon transistors fuzz, and this unit sound so good, so had to change the plans, contacted Camden Records in Camden Town, London.
They contacted to Javier Amaya, current guitarrist of The Grudge, and absolutely a Stoner Metal Master. The demo was recorded in the evening and enjoyed a lovely time exploring different sounds an settings with the Orange amplifier, and custom Gibson Les Paul and Fender Stratocaster guitars.
Thanks to this preorder from Terry, our customer, guitarrist Javier Amaya loved our silicon Fuzz BC109, so we decided to make a small run of Band of Gypsys pedals and gift to the guitarrist, and friend with a special version of this pedal in hammered sparkling red and white knobs.
RangeMaster Treble Booster Texas Ranger Cesar Diaz w/ BC167B silicon version
King Fuzz Rhodium Electronics
King Fuzz is a prototype, based on a non biased MKI.5 two germanium transistors fuzz one knob fuzz control circuit.
Unique Fuzz circuit with a pair of vintage matched RS Mullard AC128 germanium pnp with hFE 120/120, high quality HI-FI audio grade and military standards electronics components.
Hand made etched PCB layout. Enclosure dimension 1590DD standard. Battery door access and PSU connector to 9 Volt negative center.
All components, including potentiometer, jacks and switch built in a single PCB (etched board). Unique Boutique Prototype for one knob fuzz control, pedal designed in the City of London.
Muff Fuzz Boutique NEC c4558c Japan
The secret to find the tone with this circuit is the amplifier to used.
In this case, the secret of my customer, and better musician, was a recording made with a Valvetone 5 Watt amplifier through a Celestion Vintage 2x10 Cab.
I studied this recording, but the standard circuit is critical, and the original setup five capacitors. Valvetone amps are Australian made amps, sometime called EB amps. I did this demo with a Laney, whilst in the new EHX nano version official demo I think they used a Blackstar amp or similar.
One of those preorders that requires the audition of samples and research tone.

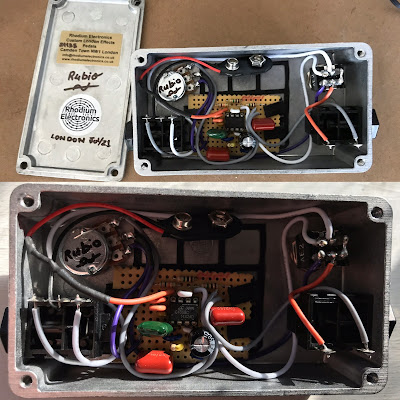

This a replica of the Muff Fuzz by EHX in the early 70’s opamp version.
Our friend in the Land of Oz wanted a standard copy of the circuit, which following different resources and genuine pieces as pictured, found it has a five capacitors in it layout.
We tried to replicate this early 70’s commercial version with alpha switch and potentiometer, in veroboard as requested to keep a 70’s minded engineering, and standard Mylar and low ESR electrolytic and Farnell 1N4148 diodes based on opamp NEC Japan c4558c.
Muff Fuzz Boutique NEC c4558c Japan
The secret to find the tone with this circuit is the amplifier to used.
In this case, the secret of my customer, and better musician, was a recording made with a Valvetone 5 Watt amplifier through a Celestion Vintage 2x10 Cab.
I studied this recording, but the standard circuit is critical, and the original setup five capacitors. Valvetone amps are Australian made amps, sometime called EB amps. I did this demo with a Laney, whilst in the new EHX nano version official demo I think they used a Blackstar amp or similar.
One of those preorders that requires the audition of samples and research tone.
This a replica of the Muff Fuzz by EHX in the early 70’s opamp version.
Our friend in the Land of Oz wanted a standard copy of the circuit, which following different resources and genuine pieces as pictured, found it has a five capacitors in it layout.
We tried to replicate this early 70’s commercial version with alpha switch and potentiometer, in veroboard as requested to keep a 70’s minded engineering, and standard Mylar and low ESR electrolytic and Farnell 1N4148 diodes based on opamp NEC Japan c4558c.
Rhodium Electronics Hyperion Fuzz Cloned Gnarly Fuzz Hammered Gold
Fuzz Mullard AC128 Germanium hFE 160/180 Fuzzface circuit By Rhodium Electronics
One Transistor Fuzz Rhodium Electronics
OTF-1 Silicon BC108B
Fuzz pedal built in veroboard with audio grade electronics components, setup 22 awg wiring, Neutrik jack connectors and Alpha potentiometers and switch. Battery free pedal, it works with 9 Volt PSU negative centre. Transistor shoes socket for housing silicon transistor pins. Biased circuit.
 |
Fuzz pedal built in veroboard with audio grade electronics components, setup 22 awg wiring, Neutrik jack connectors and Alpha potentiometers and switch. Battery free pedal, it works with 9 Volt PSU negative centre. Transistor shoes socket for housing silicon transistor pins. Biased circuit.
Rhodium Electronics Jimi's Fuzz Mullard OC76 PnP Germanium
Jimi’s Fuzz is powered to 9 Volts battery. Jimi’s Fuzz is the genuine fuzz circuit with vintage metal canned Silicon SGS transistors BC108.
Treble Booster Master of Range Handbuilt RangeMaster Mullard OC44 OC45 OC71 GE Rhodium Electronics
Treble Booster Master of Range Handbuilt RangeMaster Mullard OC45 Rhodium Electronics recorded wih Fender Stratocaster Japan Series E Kahler bridge. Handbuilt pedals in the City of London. Bespoke audio projects and vintage electronics equipment specialist. Treble Booster built to excel. Recorded with Marshall DSL-1 amplifier, clean channel, quarter volume, maximum gain. Fender Stratocaster guitar 5 ways switch in the bridge pickups position.
Rhodium Electronics GE Treble Boost 2019
Black Gold Sparkle & Mullard OC71
Gold Sparkling
Fuzz 151 USER TONE Biasing Siemens AC151 GE Transistors MKII reissue biased MKI revision 5 Rhodium Electronics
Fuzz 151 USER TONE Biasing Siemens AC151 GE Transistors MKII reissue biased MKI revision 5 Rhodium Electronics
Fuzz 151 for Guitar Rhodium Electronics vintage Siemens Germanium transistors with Biased control in a Golden Fuzz edition with sparkle black back cover.
Hand made in London and designed to excel. Amazing fuzz sound and bandwidth. Bias control for more versatile fuzz range for professionals. Power Supply to 9 Volts with negative center.
Boutique FUZZ Distortion BC108 RS Mullard Silicon Custom Dallas Arbiter FUZZface-like
Fuzz Isle of Wight AC151 Valvecaster Tube Boost Overdrive Epiphone
Messing Around Fuzz Hyperion Valvecaster Bass demo Fender Squier JV
Classic Fuzz Moustache by Rhodium Electronics. AC128 transistors
Les Paul Epiphone Slash Rhodium Electronics 1965 Fuzz Marshall DSL-1
Fuzz 151 Rhodium Electronics Gold Edition Pegasus - Fender Stratocaster
